NJP 1200C automatic capsule filling Machine

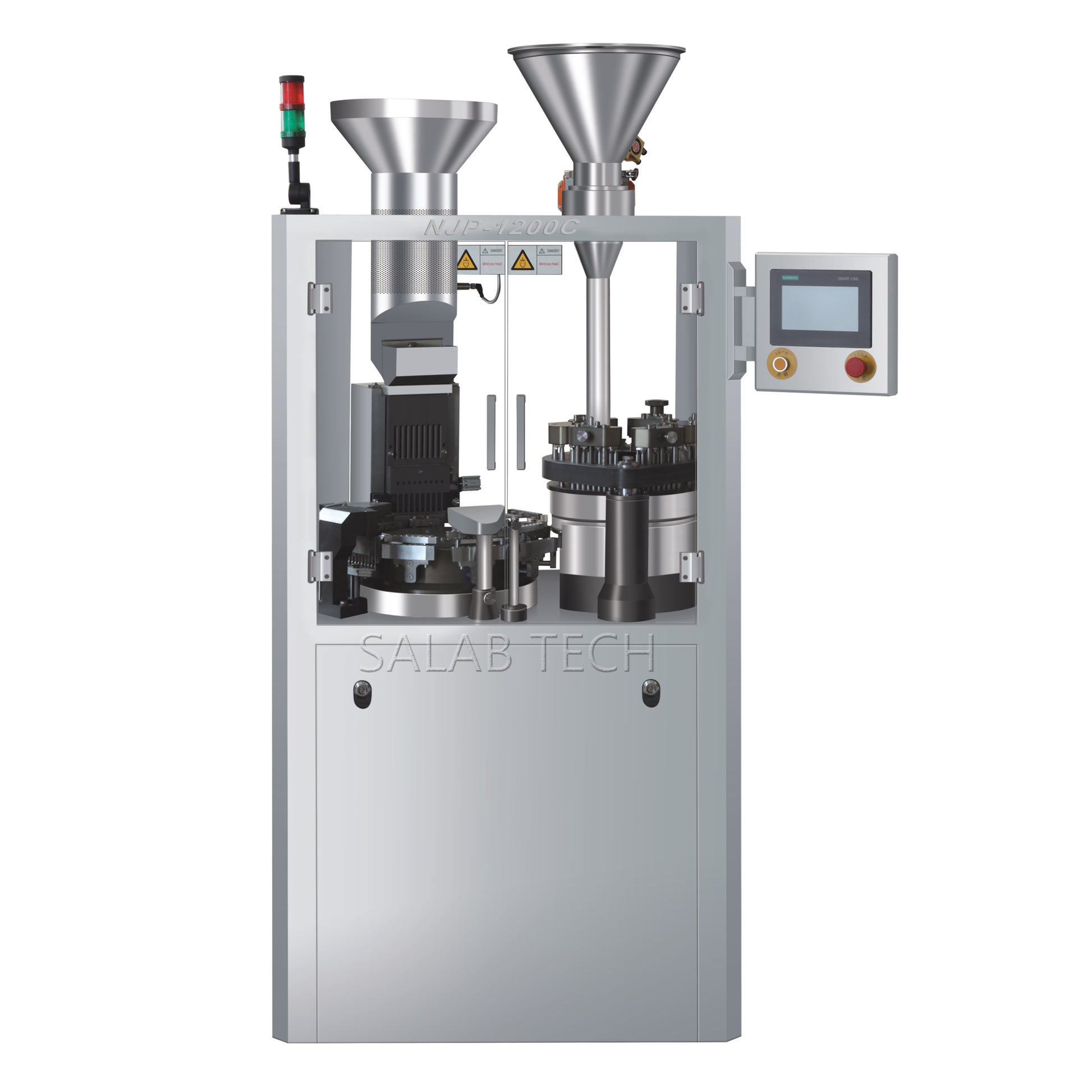

NJP-1200C Automatic Capsule Filling Machine

The NJP-1200C Automatic Capsule Filling Machine is a high-capacity solution designed for large-scale capsule production. With its advanced features, this machine ensures precision and efficiency, capable of handling a wide range of materials and capsule sizes. Ideal for pharmaceutical and nutraceutical industries, it provides a reliable, consistent solution for high-volume production.

Key Features:

• High Output Capacity: Capable of filling up to 72,000 capsules per hour, making it ideal for high-demand manufacturing environments.
• Versatile Material Handling: Suitable for a range of materials including powder, granules, pellets, and tablets.
• Precision Filling Accuracy: Provides ±3% accuracy for Western medicine and ±4% for Chinese medicine, ensuring top-notch quality control.
• Efficient Dust Collection: Equipped with an advanced dust collector (210 m³/h) to maintain a clean and safe working environment.
• Low Noise Operation: Operating at ≤75 dBA, the machine ensures quieter production processes.

Technical Specifications:

• Model: NJP-1200C
• Filling Capacity: 72,000 pcs per hour
• Weight: 1100 kg
• Dimension: 1090 × 905 × 2070 mm
• Power Supply: 380/220V, 50Hz
• Total Power: 5.5 KW
• Segment Bores: 9 holes
• Vacuum: 40 m³/h, -0.04 ~ -0.08 MPa
• Dust Collector: 24.5 KPa, 210 m³/h
• Air Compression: Air consumption 5 m³/h, Pressure 0.3–0.4 MPa
• Water Source: 500 L/h, 0.1 ~ 0.2 MPa
• Operating Noise: ≤ 75 dBA
• Filling Percentage:
• Empty Capsules: 99.9%
• Filled Capsules: 99.8%
• Capsule Sizes: 00, 0, 1, 2, 3, 4, 5#
• Filling Accuracy:
• Western Medicine: ±3%
• Chinese Medicine: ±4%
• Suitable for: Powder, Granules, Pellets, Tablets

The NJP-1200C Automatic Capsule Filling Machine provides reliable, high-speed, and efficient performance for large-scale capsule filling operations. It’s built to handle various materials and capsule sizes with utmost precision, making it an essential asset for pharmaceutical manufacturers and other industries requiring high-volume filling.
