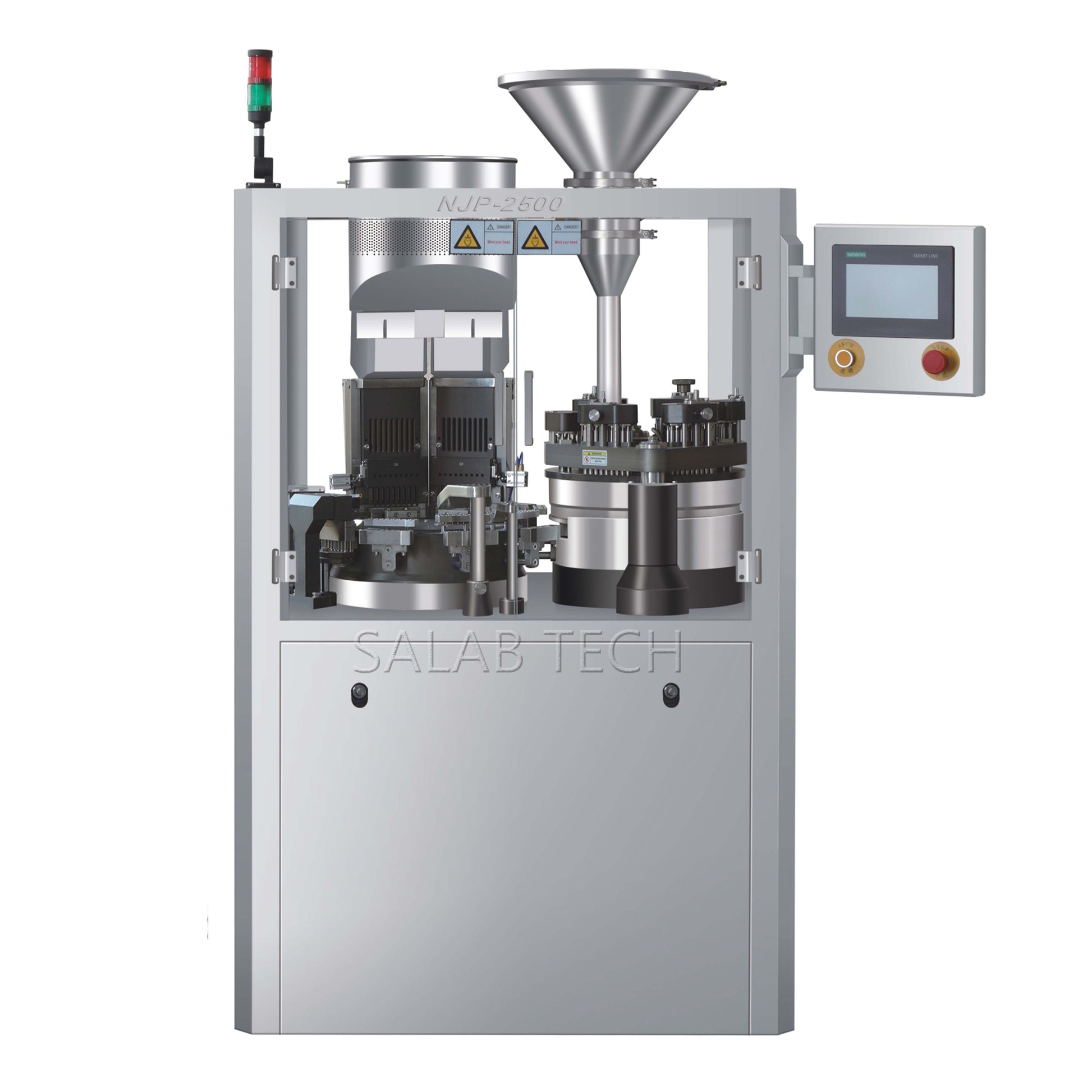

NJP 2500C automatic capsule filling machine

NJP-2500C Automatic Capsule Filling Machine

The NJP-2500C Automatic Capsule Filling Machine is a high-performance, large-scale solution designed for the pharmaceutical and nutraceutical industries. With its enhanced features and advanced technology, it ensures high efficiency and precision, providing unmatched performance in high-capacity capsule production. It is perfect for industries that require fast, reliable, and accurate filling.

Key Features:

• Massive Output Capacity: Capable of filling 150,000 capsules per hour, making it ideal for large-scale production lines.
• Versatile Handling: Designed to accommodate various materials, including powder, granules, pellets, and tablets.
• Precision and Accuracy: Achieves ±3% accuracy for Western medicine and ±4% for Chinese medicine, ensuring product consistency.
• Dust Collection System: Equipped with a dust collector (210 m³/h) for a cleaner, safer production environment.
• Low Noise Operation: Ensures quieter operations with an operating noise level of <75 dBA.

Technical Specifications:

• Model: NJP-2500C
• Filling Capacity: 150,000 pcs per hour
• Weight: 1500 kg
• Machine Size: 1100 × 1200 × 2000 mm
• Power Supply: 380/220V, 50Hz
• Total Power: 8 KW
• Segment Bores: 18 holes
• Vacuum: 63 m³/h, -0.04 ~ -0.08 MPa
• Dust Collector: 24.5 KPa, 210 m³/h
• Air Compression: Air consumption 6 m³/h, Pressure 0.3–0.4 MPa
• Water Source: 500 L/H, 0.2–0.3 MPa
• Operating Noise: <75 dBA
• Filling Percentage:
• Empty Capsules: 99.9%
• Filled Capsules: 99.8%
• Capsule Sizes: 00, 0, 1, 2, 3, 4, 5#, Safety capsule A-E
• Filling Accuracy:
• Western Medicine: ±3%
• Chinese Medicine: ±4%
• Suitable for: Powder, Granules, Pellets, Tablets

The NJP-2500C Automatic Capsule Filling Machine is engineered for high-volume manufacturing needs, providing precise and efficient capsule filling. This machine is ideal for businesses looking to scale up their production capabilities while ensuring the highest quality standards.
