NJP 400 automatic filling Machine

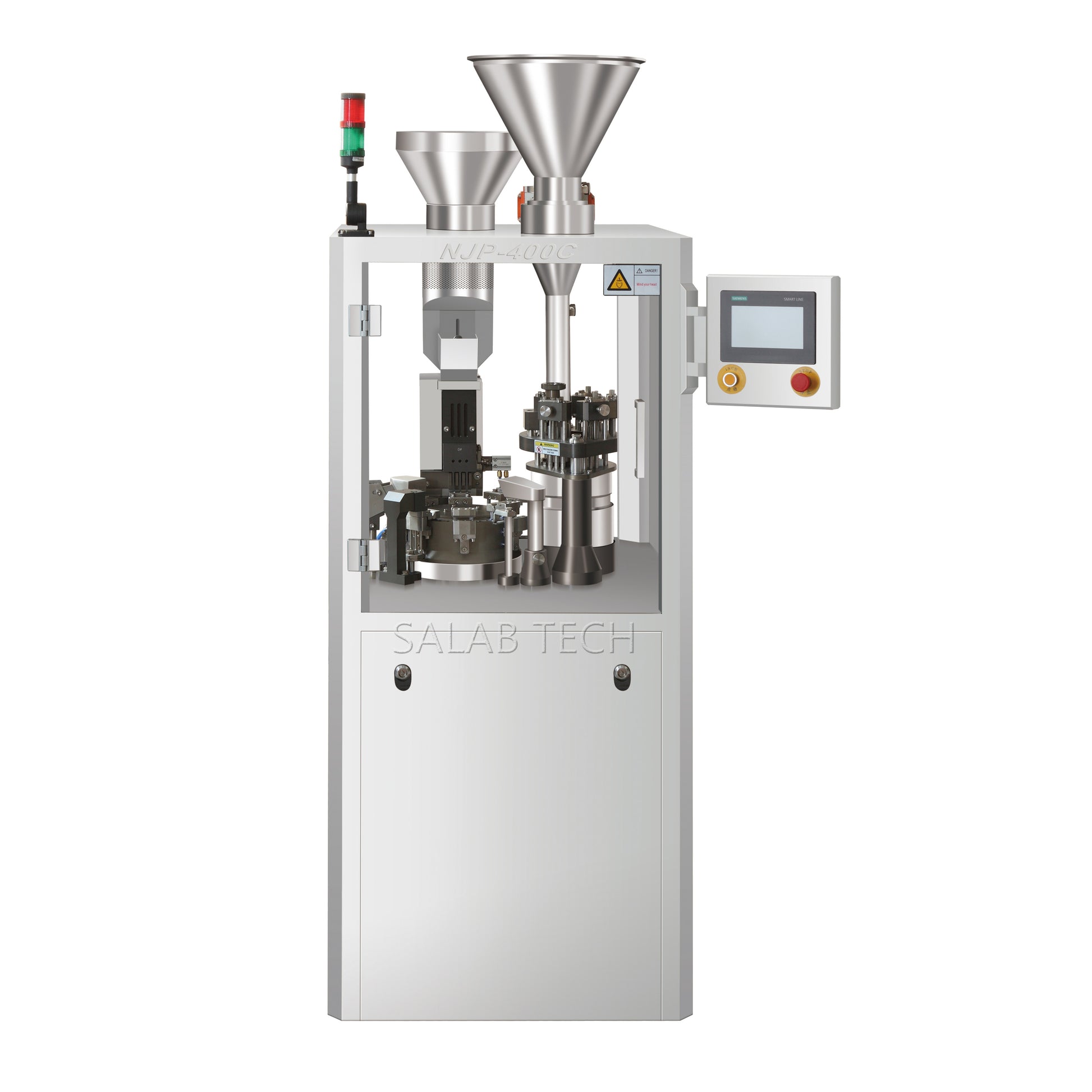

NJP-400C Automatic Capsule Filling Machine

The NJP-400C Automatic Capsule Filling Machine is designed for efficient, high-volume capsule filling. With an impressive output capacity and precise filling accuracy, it is ideal for pharmaceutical manufacturers looking to optimize their production process. The machine accommodates a wide range of capsule sizes and materials, ensuring versatility and reliability in various production environments.

Key Features:

• High Filling Capacity: Can fill up to 24,000 capsules per hour, ensuring high productivity.
• Wide Compatibility: Suitable for filling a variety of materials, including powder, granules, pellets, and tablets.
• Precision and Efficiency: Offers an accuracy of ±3% for Western medicine and ±4% for Chinese medicine.
• Low Operating Noise: With operating noise levels below 75dB(A), it is ideal for maintaining a quiet production environment.
• Advanced Dust Collection: Features a dust collector with a powerful 180m³/h airflow for clean and efficient operation.

Technical Specifications:

• Model: NJP-400C
• Filling Capacity: 24,000 pcs per hour
• Weight: 600 kg
• Dimension: 1000 × 710 × 1900 mm
• Power Supply: 380/220V, 50Hz
• Total Power: 3KW
• Segment Bores: 3 holes
• Vacuum: 20 m³/h, 0.04–0.08 MPa
• Dust Collector: 17.6 KPa, 180 m³/h
• Air Compression: Air consumption 4 m³/h, Pressure 0.3–0.4 MPa
• Operating Noise: <75 dB(A)
• Filling Percentage:
• Empty Capsules: 99.9%
• Filled Capsules: 99.8%
• Capsule Sizes: 00, 0, 1, 2, 3, 4, 5#, Safety Capsule A-E
• Filling Accuracy:
• Western Medicine: ±3%
• Chinese Medicine: ±4%
• Suitable for: Powder, Granules, Pellets, Tablets

The NJP-400C Automatic Capsule Filling Machine is designed to provide a high-quality, efficient solution for large-scale capsule filling in pharmaceutical and nutraceutical production lines. Its precision and versatility make it an excellent choice for manufacturers seeking to increase productivity while maintaining high standards of quality control.
