NJP 800C automatic capsule filling machine

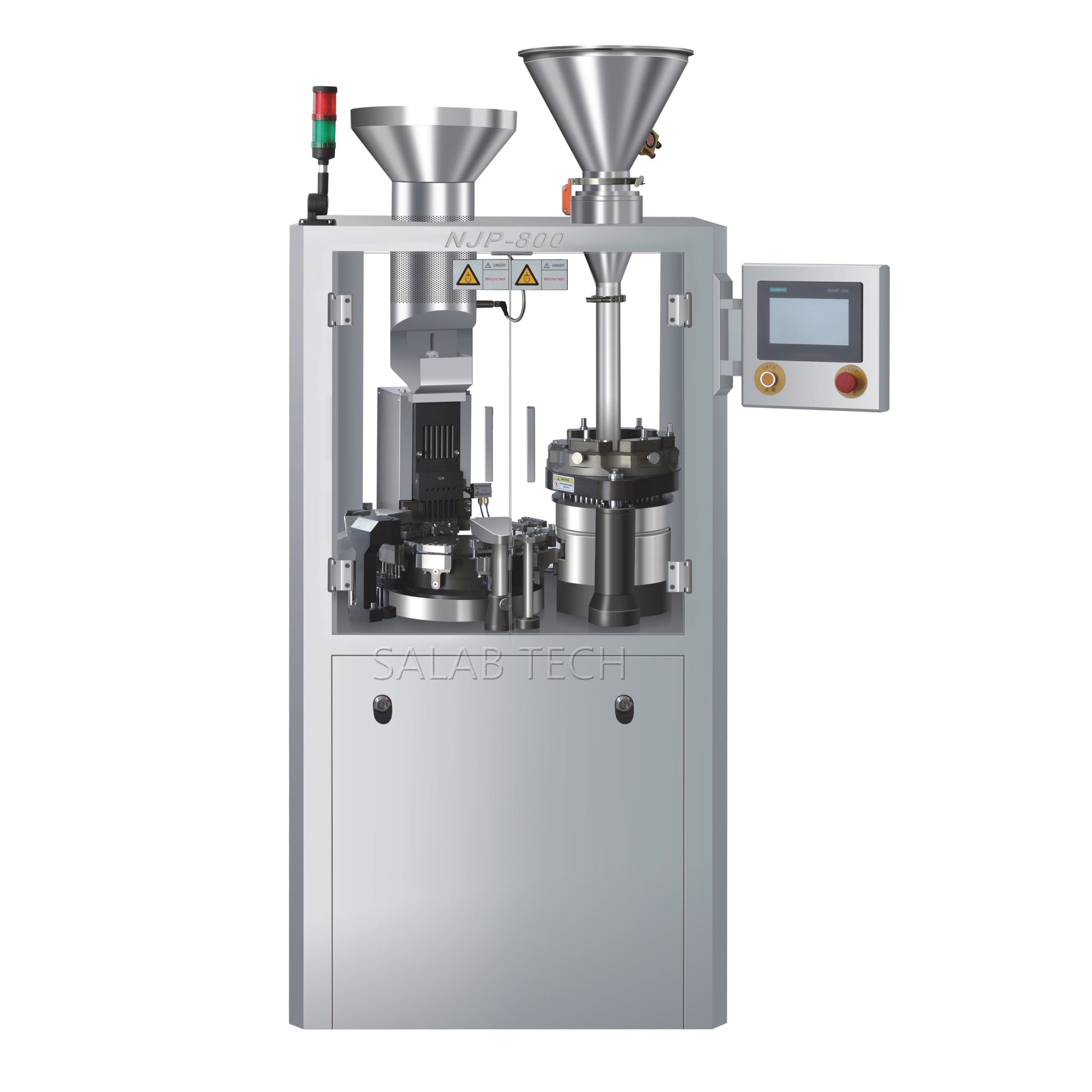

NJP-800C Automatic Capsule Filling Machine

The NJP-800C Automatic Capsule Filling Machine is designed for large-scale production, offering high efficiency and precision in filling capsules. With an impressive filling capacity and advanced features, it ensures optimal performance in pharmaceutical and nutraceutical manufacturing. This machine is capable of handling a variety of capsule sizes and filling materials, making it a versatile solution for various production needs.

Key Features:

• High Output Capacity: Capable of filling up to 48,000 capsules per hour, making it perfect for high-volume production environments.
• Versatile Material Handling: Suitable for a wide range of materials, including powder, granules, pellets, and tablets.
• Precision Accuracy: Offers ±3% accuracy for Western medicine and ±4% for Chinese medicine, ensuring reliable and consistent product quality.
• Efficient Dust Collection: Equipped with a powerful dust collector (210 m³/h), maintaining a clean working environment.
• Low Noise Operation: Operates with low noise (<75 dB(A)), ideal for quieter production spaces.

Technical Specifications:

• Model: NJP-800C
• Filling Capacity: 48,000 pcs per hour
• Weight: 900 kg
• Dimension: 1100 × 900 × 2050 mm
• Power Supply: 380/220V, 50Hz
• Total Power: 5KW
• Segment Bores: 6 holes
• Vacuum: 40 m³/h, 0.04–0.08 MPa
• Dust Collector: 24.5 KPa, 210 m³/h
• Air Compression: Air consumption 5 m³/h, Pressure 0.3–0.4 MPa
• Water Source: 500 L/h, 0.1–0.2 MPa
• Operating Noise: <75 dB(A)
• Filling Percentage:
• Empty Capsules: 99.9%
• Filled Capsules: 99.8%
• Capsule Sizes: 00, 0, 1, 2, 3, 4, 5#
• Filling Accuracy:
• Western Medicine: ±3%
• Chinese Medicine: ±4%
• Suitable for: Powder, Granules, Pellets, Tablets

The NJP-800C Automatic Capsule Filling Machine is an ideal solution for large-volume production, offering advanced features such as high-capacity filling, precise dosing, and efficient dust collection. Its versatility in handling different materials and capsule sizes ensures it meets the needs of various manufacturing applications.
